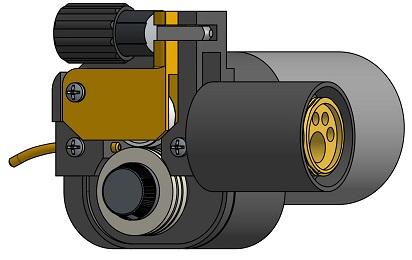

PolyDrive-CRH-230 / -CRH-237

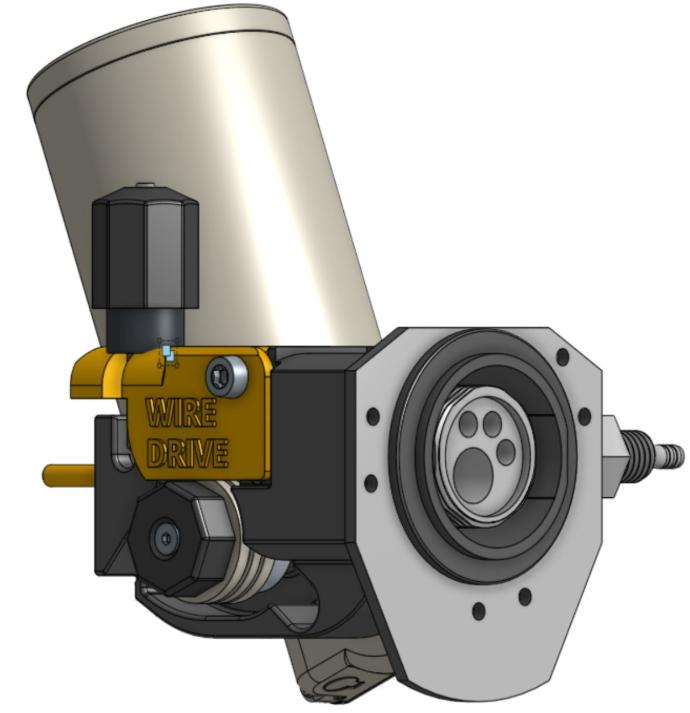

Our two rolls drive PolyDrive-CRH-230 can be mounted with an inclination angle of the torch adapter from 0° to 15° downwards. It has a base plate casted in black fibre-glass reinforced Polyamide. The motor is attached horizontally with attached gearbox or as option vertically. The Aluminium torch adapter and the front protection are separate from the unit, available in different length.
Drive roll diameter is 30mm or 37mm, the pressure roll diameter is 26mm.

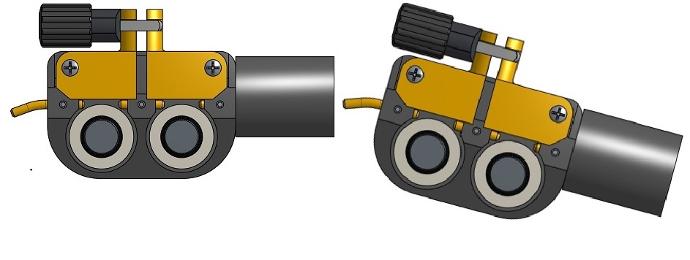

PolyDrive-TRH-430 / -TRH-437
Our straight four rolls drive PolyDrive-TH-430 is minimized in size and weight and is ideally used in transportable wire feeders or for robot applications.

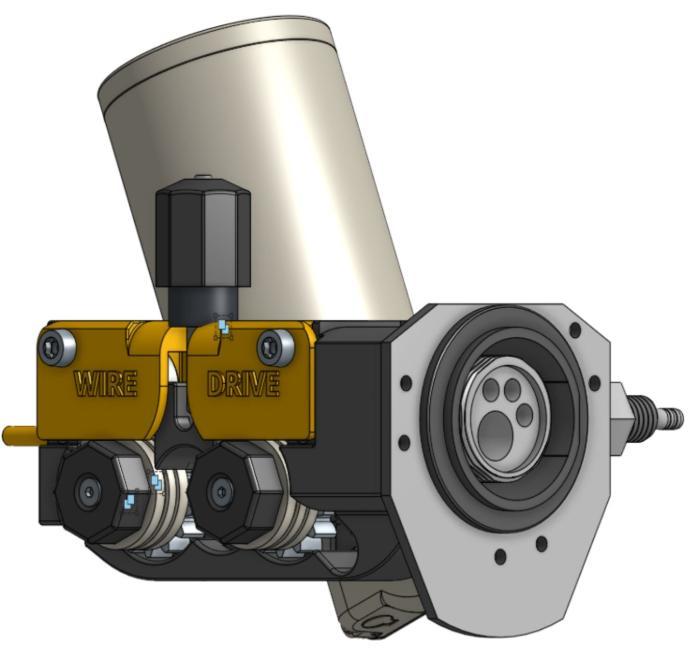

It can be mounted with an inclination angle of the torch adapter from 0° to 15° downwards. It has a base plate casted in black fibre-glass reinforced Polyamide. The motor is attached horizontally with gearbox. Optionally, the motor can be delivered for vertical assembly (type designation TRV-430). The Aluminium torch adapter and the front protection are separate from the unit, available in different length.
Drive rolls are available with a diameter of 30mm or 37mm.
PolyDrive-AFH-430 / -AFH-437
Our PolyDrive-AFH-430 is ideally suited for manual welding machines, allowing a natural connection angle of the torch cable.
The inclination angle of the torch adapter is directed in the range of -20° to -30° downwards. It has a base plate in black fibre-glass reinforced Polyamide. The motor is attached horizontally with gearbox. Optionally, the motor can be delivered for vertical assembly (type designation AFV-430). The Aluminium torch adapter and the front protection are separated from the unit, available in different length.
Drive rolls are available with a diameter of 30mm or 37mm. They are separated from the gear, recommended for high operating hours per year.
Drive rolls are equipped with Bronze bushings or optionally with ball bearings.
Protected patented
industrial design DM/222915
PolyDrive-SWH-437
The versatile concept with the
continuously
adjustable angle from zero degrees to 45 degrees
of inclination allows
the use of this single wire drive type in a whole product line of welding
machines. The infinitely variable wire drive allows the
torch adapter to move freely and follow the torch cable
during the
welding process.
Protected patented
industrial design DM/230944
AluDrive-SWH-437
Our AluDrive-SWH-430 can be mounted with an inclination angle of the torch adapter from 0° to 45° downwards. It has a base plate made out of Aluminium die cast with integrated torch adapter. The motor is attached horizontally. Optionally, the motor can be delivered for vertical assembly (type designation SWV-430). The front protection is separated from the unit.
Drive rolls are available with a diameter of 37mm. They are separate from the drive gears, recommended for high operating hours per year.
Drive rolls are equipped with Bronze or optionally with ball bearings.
Protected patented
industrial design DM/230944

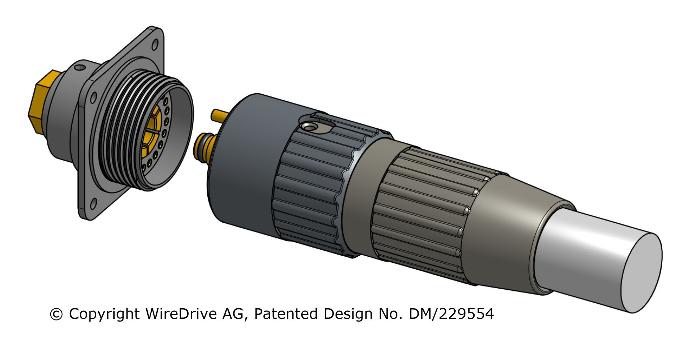

Coaxial welding cable WDCC-CA
Modern welding machines require an
increasing number of signal wires for communication
between the power source and the wire feeder. Our innovative and very robust combined coaxial welding cable provides enough signal connections for advanced needs. Separate connectors for the signal cable are no longer needed, saving space as well as material and assembly costs. The coaxial welding cable is available for water-cooled or air-cooled applications.
The patented design of the cable system is very suitable for harsh environmental conditions, for example on construction sites and in shipyards. Our cable has been in use in shipyards for several years.
Protected patented
industrial design DM/229554
